BSIDE Handheld 2-in-1 Oscilloscope Multimeter 10MHz, 1 Channel 9999 Counts Digital Multimeter Rechargeable with Color Screen for automotive electrical work
Product Overview
Marke: BSIDE
Stromquelle: Batteriebetrieben
Stil: Digital
Farbe: rot
Min. Betriebsspannung: 400 Volt (Wechselstrom)

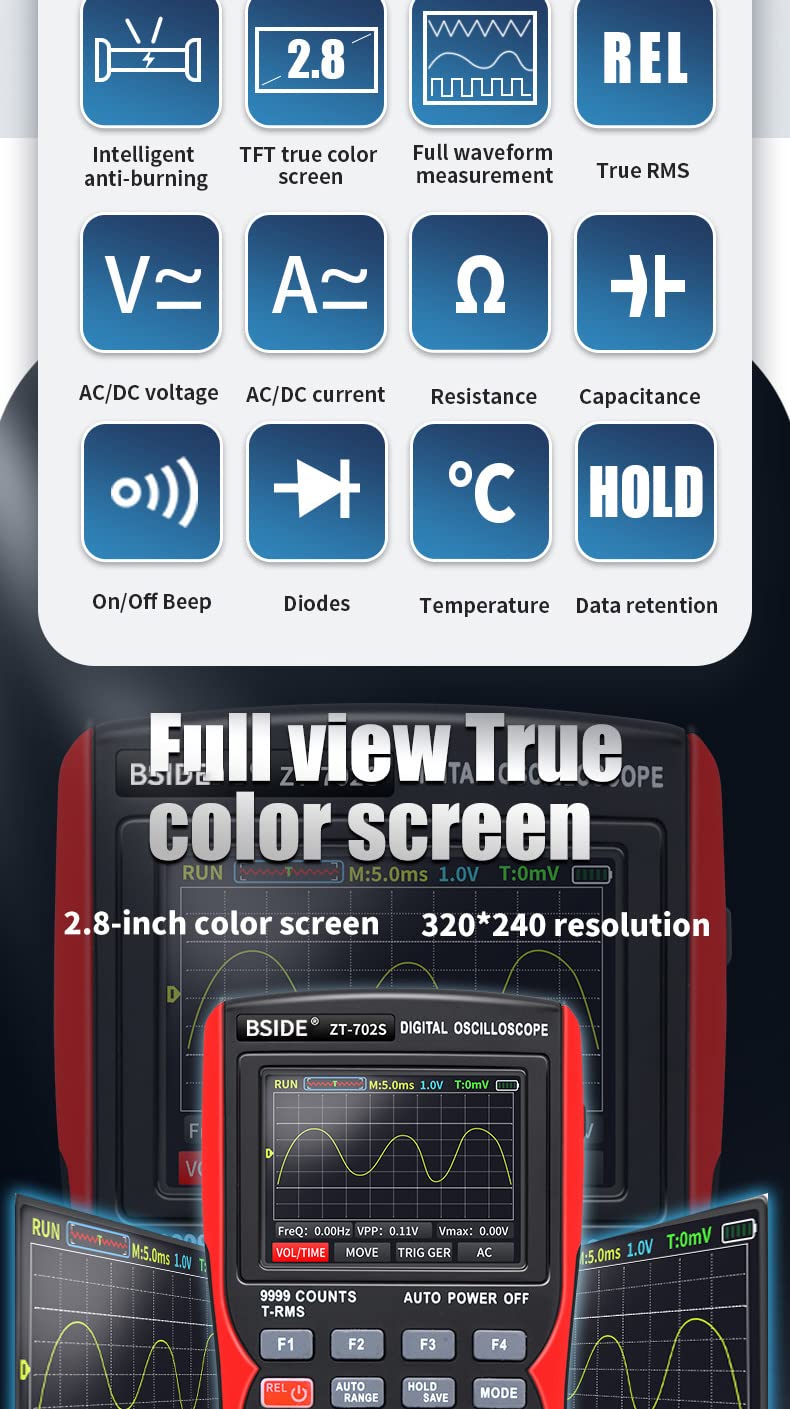

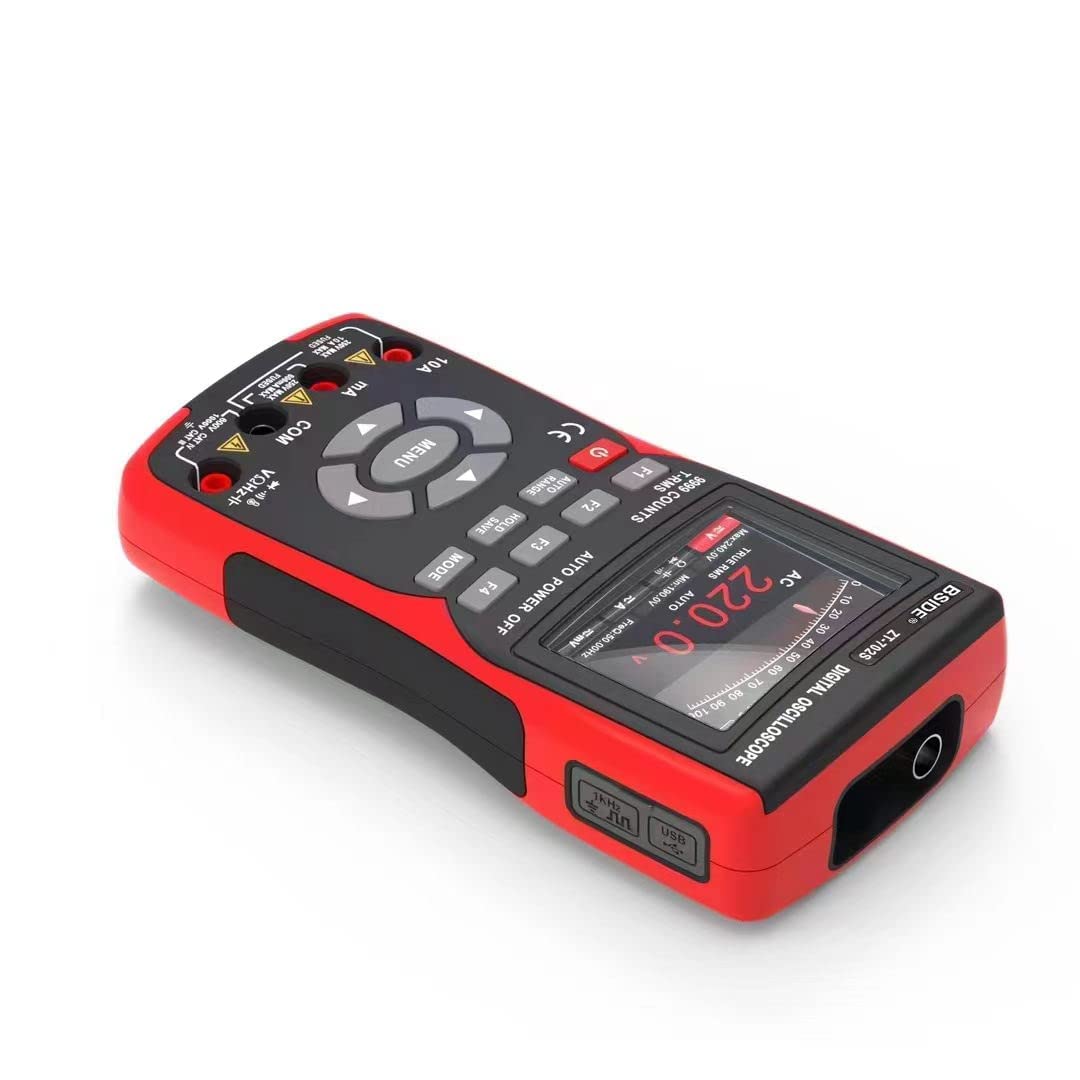

- Handheld oscilloscope & multimeter---The BSIDE ZT-702S Oscilloscope Multimeter is a single-channel handheld device with a 2.8-inch IPS display, 10Mhz Bandwidth , 48MSa/s high real-time sampling rate, and ±400V input capability. Mode key one button to switch the mode of digital multimeter and oscilloscope. It is user-friendly and improves work efficiency.
- Oscilloscope Mode---one-key Automatic waveform capture, 3 trigger mode: auto/normal/single, Supports storage and formatting of waveform data, Exported in the form of pictures, PC transmission, 3V-1kHZ square wave output.
- Multimeter Mode---True RMS 9999 counts multimeter, measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, and perform diode and Continuity measurement. It is ideal for household, automobile, and circuit system electrical testing.
- Safety and durability---The 702S meets CTA III 1000V safety standards in multimeter mode and CTA II 600V in oscilloscope mode. It features safety overload protection, double ceramic fuse switch, and ABS+TPE double injection molding for durability and protection.
- Rechargeable battery--This oscilloscope multimeter is integrated with a rechargeable 18650 battery. With indication of battery status and charge level. No need to worry about sudden battery depletion.
